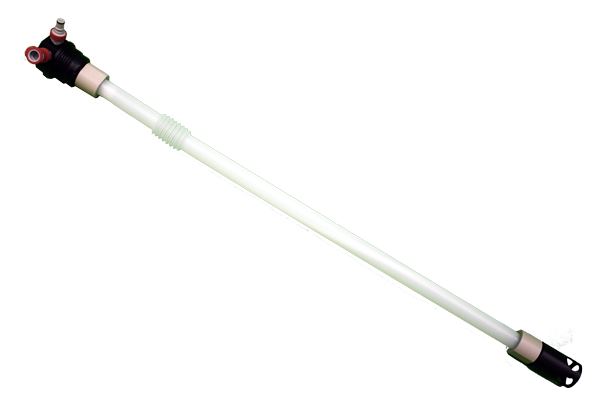

VARIBOX FC 1000 NS4 Extractor Tube EPDM

Precise and Closed Chemical Dosing

The VARIBOX FC 1000 NS4 Extractor Tube EPDM is designed for applications where liquid chemicals need to be dispensed safely and accurately. With its low flow rate, the NS4 system is particularly suitable for fine dosing applications where controlled chemical delivery is more important than high-volume transfer.

Installed through the top of the VARIBOX FC 1000, the extractor tube reaches the lowest point of the inner container. A matching NS4 coupler creates a liquid-tight, closed connection between the VARIBOX and your dosing or pumping system.

This allows chemicals to be dispensed without opening the IBC during normal operation, helping prevent chemical product and potentially hazardous fumes from escaping.

Designed for Fine Chemical Dosing

Not every chemical application requires a high flow rate. Processes that depend on accurate dosing benefit from a controlled and consistent supply of product.

The NS4 extractor tube has been specifically developed for fine dosing, with a flow capacity of approximately 50 litres per hour. This makes it suitable for applications where smaller quantities of chemical need to be supplied to a process in a controlled way.

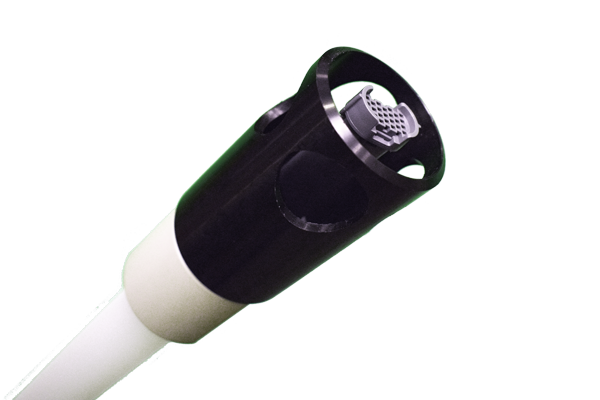

The extractor tube also features a non-return valve at the bottom. This blocks the return flow of product through the tube, although it is not designed to provide a fully sealed shut-off.

Actual flow rates depend on the chemical and operating conditions.

Closed Dispensing for Safer Chemical Handling

Safe chemical handling continues beyond transport and storage. Connecting the container to dosing equipment and transferring the chemical into a process are equally important.

The NS4 system creates a closed connection between the VARIBOX FC 1000 and your dosing equipment. When the matching NS4 coupler is connected, the extractor tube and coupler open simultaneously, allowing the chemical to flow through the system.

After disconnection, the NS4 extractor tube automatically closes.

This means the VARIBOX does not need to be opened during normal dispensing. The closed system helps keep chemicals and fumes contained and reduces unnecessary interaction between operators and the product.

Integrated Return Connection

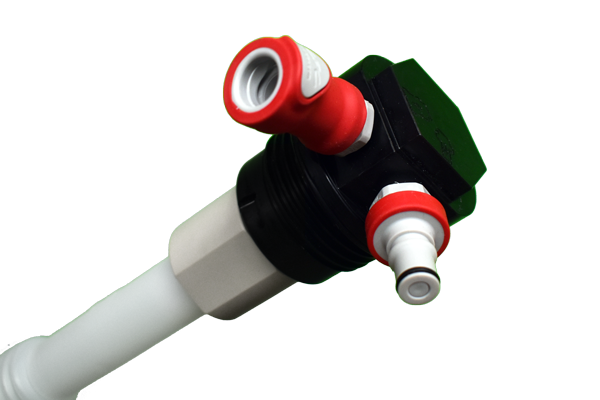

Some chemical dosing installations require a return line. For these applications, the NS4 extractor tube has a return connection integrated as standard at the top of the system.

This allows the VARIBOX FC 1000 to be connected to dosing installations that require both an extraction and return connection without the need for an additional opening in the container.

The combination of controlled extraction and an integrated return connection makes the NS4 a practical solution for specialised chemical dosing installations.

Efficient Emptying with Low Residual Volume

The NS4 extractor tube reaches the lowest point of the VARIBOX FC 1000 inner container, allowing the product to be extracted efficiently.

After emptying, approximately 0.1 litre remains in the VARIBOX FC and approximately 0.05 litre remains inside the extractor tube. These values are based on tests with water and can vary depending on the chemical and operating conditions.

Low residual volumes help reduce valuable product being left behind and minimise the amount of chemical waste that needs to be handled after emptying.

EPDM Configuration

This NS4 extractor tube is the EPDM version for the VARIBOX FC 1000.

Selecting the correct sealing configuration is essential when working with chemicals. The corresponding EPDM NS4 coupler should always be used with the EPDM extractor tube.

VARIBOX distinguishes the NS4 couplers by colour to help operators identify the correct version: the EPDM NS4 coupler has a red jacket, while the Viton version has a grey jacket.

Chemical compatibility depends on the specific chemical, concentration, temperature and operating conditions. Always verify the compatibility of the complete system before use.

VARIBOX: Safer, Reusable, Sustainable

The NS4 Extractor Tube is part of the wider VARIBOX approach to Safer, Reusable and Sustainable chemical packaging.

Safer

VARIBOX is designed to help protect people and the environment throughout the transport, storage and handling of liquid chemicals.

The NS4 system extends this safety concept to dosing. The closed connection helps prevent chemicals and fumes from escaping during normal operation, while automatic closing after disconnection supports controlled chemical handling.

Reusable

VARIBOX containers are designed for repeated industrial use. Individual components can be inspected, maintained and replaced when required, helping maintain the complete system throughout its operational life.

The NS4 extractor tube should be inspected regularly and replaced when necessary to maintain reliable operation.

Sustainable

Efficient emptying and reusable packaging help reduce waste throughout the chemical supply chain.

By extracting the chemical from the lowest point of the inner container, the NS4 system helps minimise residual product. Replaceable components also support continued use of the VARIBOX rather than unnecessary replacement of the complete packaging system.

Precise Dosing from Your VARIBOX FC 1000

The VARIBOX FC 1000 NS4 Extractor Tube EPDM combines precise chemical dosing with the safety advantages of a closed dispensing system.

Its controlled flow rate, integrated return connection, automatic closing mechanism and efficient emptying make it particularly suitable for industrial processes where accurate chemical dosing and safe handling are essential.

Combined with the corresponding EPDM NS4 coupler, it provides a reliable closed connection from your VARIBOX FC 1000 to your dosing system.

Choose the VARIBOX NS4 system for safe, controlled and precise chemical dosing.
